Single Axle Box Trailers

Hot-dip galvanised single axle box trailers from 6×4 to 8×6: 750 kg ATM unbraked, or 1400 kg ATM heavy duty with 450 mm sides and override disc brakes. All with a removable 600 mm cage, tilt function and drop-down gates.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Enquire Ring Directions

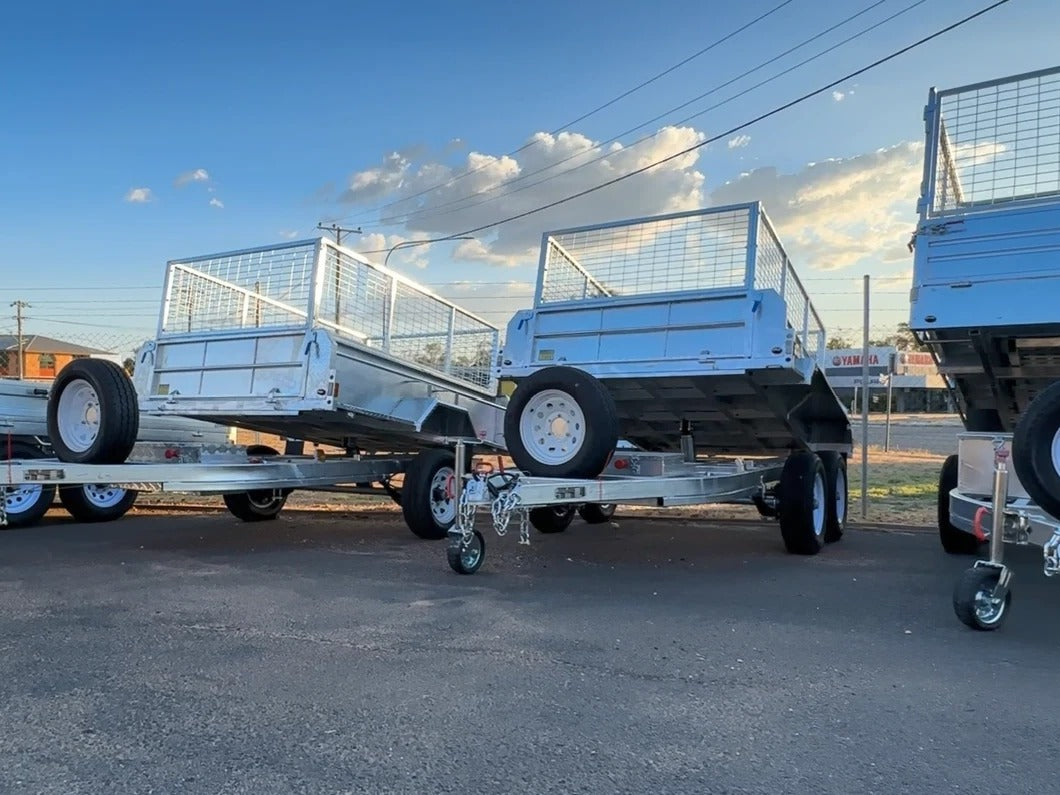

Box trailers on the yard at CH Tools, 58 Hospital Rd, Emerald

Sizes in this range

  • 6×4 Lightweight – 750 kg ATM, 1200 mm drawbar, 13" Sunraysia rims and light truck tyres (ST6X4BOXLW)
  • 6×4 Premium – 750 kg ATM, 13" Sunraysia rims and light truck tyres (ST6X4BOX)
  • 7×4 Premium – 750 kg ATM, 13" Sunraysia rims and light truck tyres (ST7X4BOX)
  • 7×5 Premium – 750 kg ATM, 14" Sunraysia rims and light truck tyres (ST7X5BOX)
  • 8×5 Premium – 750 kg ATM, 14" Sunraysia rims and light truck tyres (ST8X5BOXLS)
  • 8×5 High Sides (450 mm) – 750 kg ATM, 14" Sunraysia rims and light truck tyres (ST8X5BOXHS)
  • 8×6 Premium – 750 kg ATM, 14" Sunraysia rims and light truck tyres (ST8X6BOX)
  • 7×5 Heavy Duty – 1400 kg ATM, 450 mm sides, mechanical override disc brakes, 14" rims (ST7X5BOXHD)
  • 8×5 Heavy Duty – 1400 kg ATM, 450 mm sides, mechanical override disc brakes, 14" rims (ST8X5BOXHD)
  • 8×6 Heavy Duty – 1400 kg ATM, 450 mm sides, mechanical override disc brakes, 14" rims (ST8X6BOXHD)

Ask the team which sizes are on the yard to view.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

  • Hot-dip galvanised
  • 600mm High Cage (Removable)
  • Full sized Spare & Mount
  • Swing up Jockey Wheel
  • Fully Welded Body & Chassis (Heavy Duty)
  • Tilt Function with Quick Release Locking Pins
  • 300mm High Trailer Sides (Hot Dipped Galvanised)
  • Front and Rear Drop Down Gates (Removable)
  • Tie Down Rails All Around
  • Full Length Side Steps for Easy Loading
  • 1600mm Extra Long Draw Bar for Easy Manoeuvre & Reversing
  • 3 x Additional Support Beams & Crossmembers in the A Frame
  • AU Standard 8mm 5-Leaf Eye to Eye Springs
  • Solid Decompression Hanger for Better Performance on Corrugated Roads
  • Reinforced Under Floor with Extra Support Beams
  • 2.5mm Thickness Galvanised Checker Plate Floor/Gates/Sides
  • 45mm Round Solid Axle
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackle
  • Flat 7 Pin Plug
