10×5 Heavy Duty Tandem Box Trailer

ST10X5BOXTDM1990 kg ATMtandem axle

A hot-dip galvanised 10×5 tandem box trailer rated to 1990 kg ATM, with a 3000 × 1500 mm box, drop-down gates front and rear and a 1900 mm drawbar.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

10×6 Heavy Duty Tandem Box Trailer1990 kg ATM 8×5 Heavy Duty Tandem Box Trailer1990 kg ATM

Enquire Ring Directions

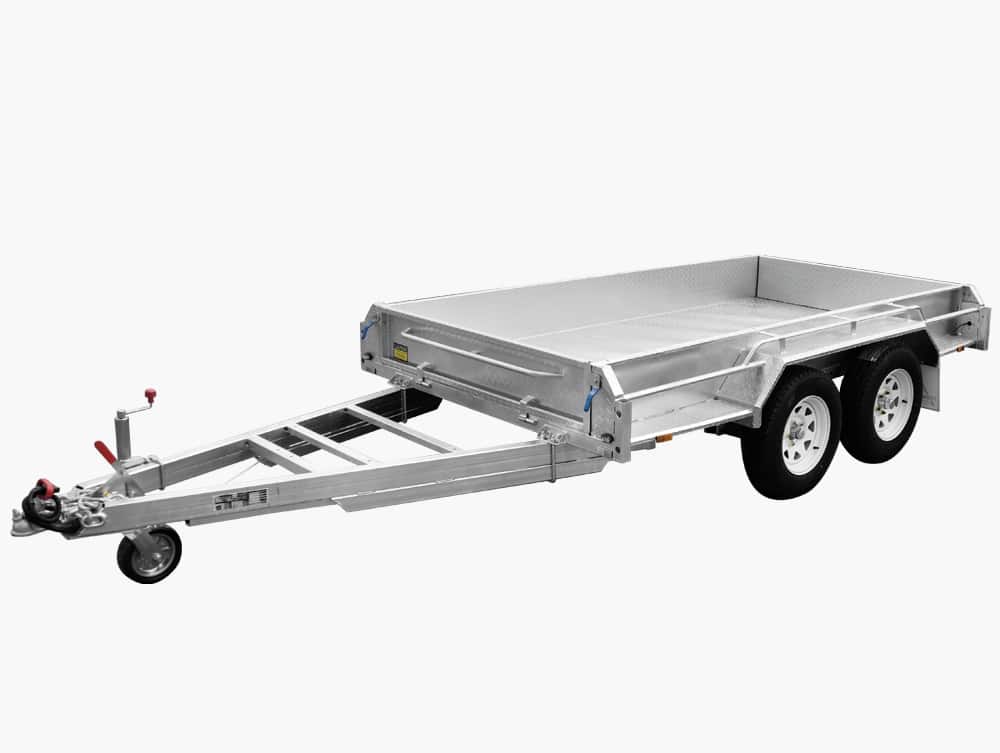

10×5 Heavy Duty Tandem Box Trailer – front three-quarter view

What it's for

Extra length over the 8×5 for longer loads: fencing gear, timber, a ride-on and the catcher, or a full site clean-up.

Specifications

Model code	ST10X5BOXTDM
ATM (aggregate trailer mass)	1990 kg
Axles	tandem
Brakes	Mechanical override brakes
Deck / box (mm)	3000 x 1500 (inner box)
Rims and tyres	14" Sunraysia rims with light truck tyres, full-size spare and upright wheel holder
Suspension	7-leaf rocker roller springs (heavy duty suspension)
Chassis	Fully welded heavy duty body with RHS tube chassis
Floor	2.5 mm galvanised checker plate floor, gates and sides
Drawbar (mm)	1900

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

Hot-dip galvanised
14" Sunraysia Rims and Light Truck Tyres Plus Full-Size Spare and Upright Wheel Holder
Swing up Jockey Wheel
Fully Welded Heavy Duty Body with RHS Tube Chassis
Full Length Side Steps for Easy Loading
2.5mm Thickness Galvanised Checker Plate Floor/Gates/Sides
Front and Rear Drop Down Gates (Removable)
1900mm Ultra-long Draw Bar for Easy Manoeuvre & Reversing
3 x Additional Support Beams & Crossmembers in the A Frame
7-Leaf Rocker Roller Springs (Heavy Duty Suspension)
2 x 50mm Round Solid Axles
Reinforced Under Floor with Extra Support Beams
Tie Down Rails All Around
LED Taillights
ADR Standard Heavy-Duty Chain & Load Rated Shackle
Flat 7 Pin Plug

Optional extras

600mm Canvas Cover & Support Frames Fitted
900mm Canvas Cover & Support Frames Fitted
Mesh Ramp Tailgate Replacement
Ladder Racks (Height Adjustable)
Mower Box with Ramp – Small 1150mm(L) x 630mm(W)
Mower Box with Ramp – Large 1150mm(L) x 760mm(W)
Toolbox TPT B1 Large: 1200mm(L) x 500mm(W) x 500mm(H)
Toolbox TPT D1 Angled: 1220mm(L) x 500mm(W) x 400mm(H)
900mm Extra High Removable Cage
2800KG ATM Upgrade
450mm Extra Deep Trailer Sides

Ask the team about fitting extras to suit the job.
