10×6 Cattle Crate Trailer

ST10X6CC3500 kg ATMtandem axle

A hot-dip galvanised 10×6 trailer rated to 3500 kg ATM with a removable 1700 mm cattle crate, a 3000 × 1800 mm floor and a rear ramp gate.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

12×7 Hydraulic Tipping Livestock Trailer3500 kg ATM
Enquire Ring Directions

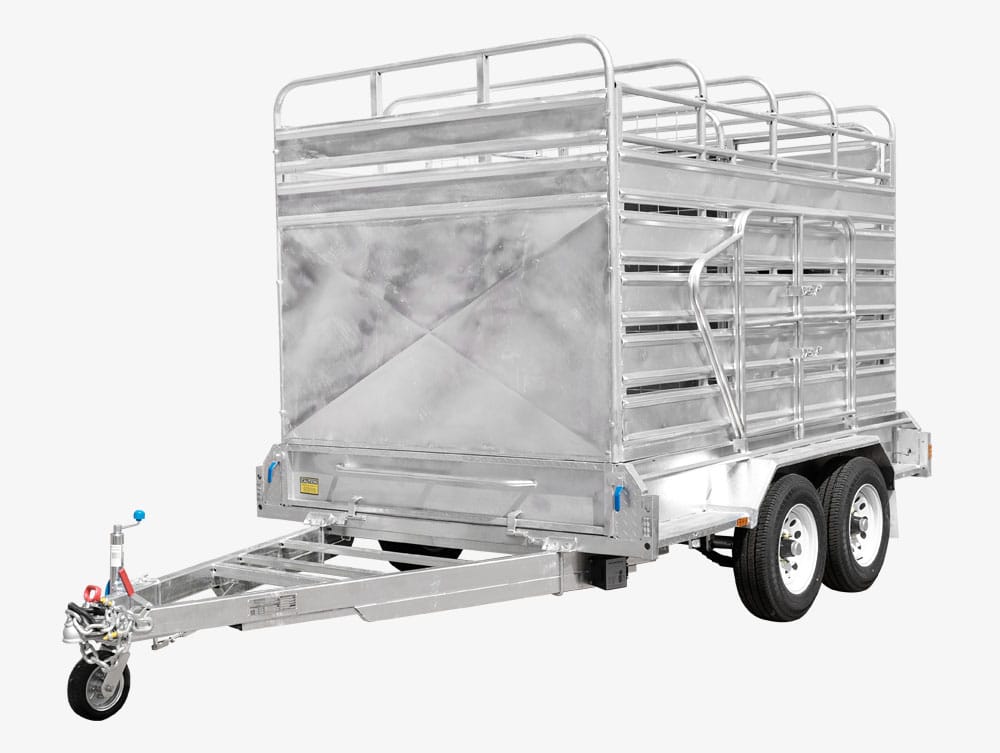

10×6 Cattle Crate Trailer – front three-quarter view

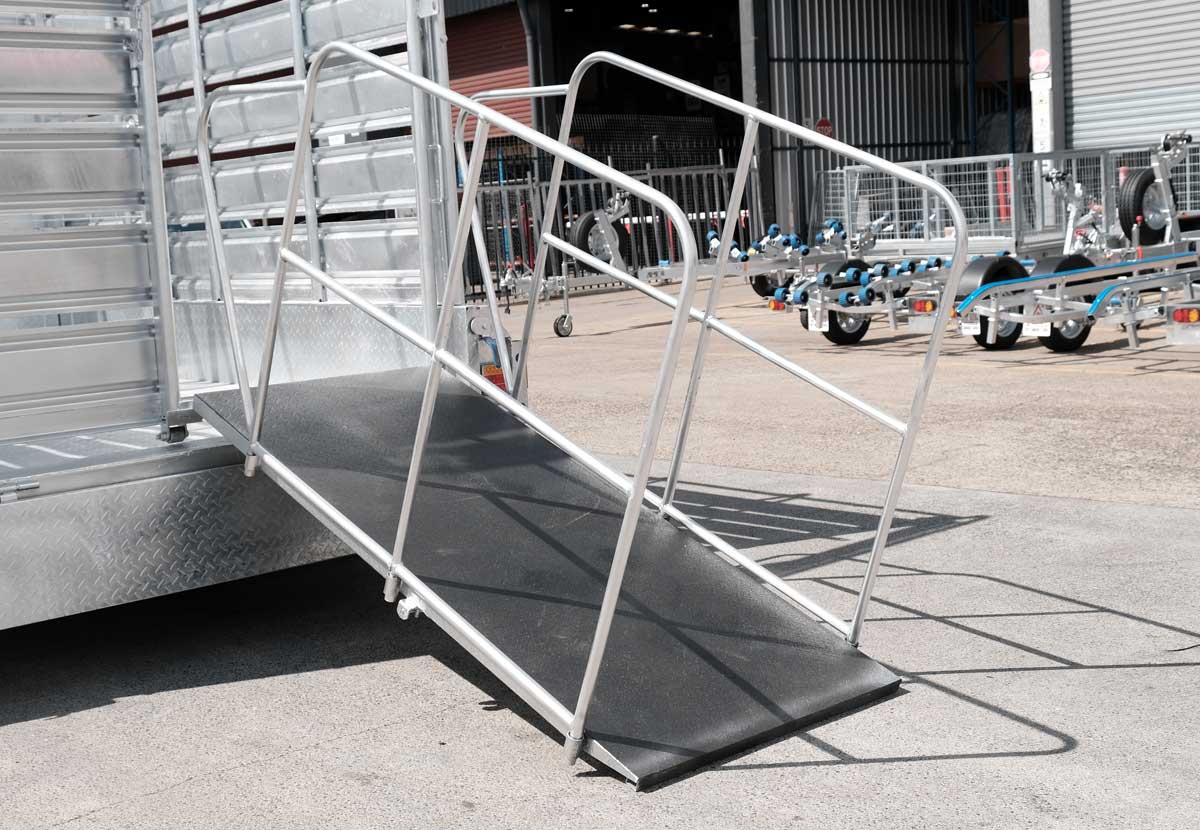

10×6 Cattle Crate Trailer – loading ramp

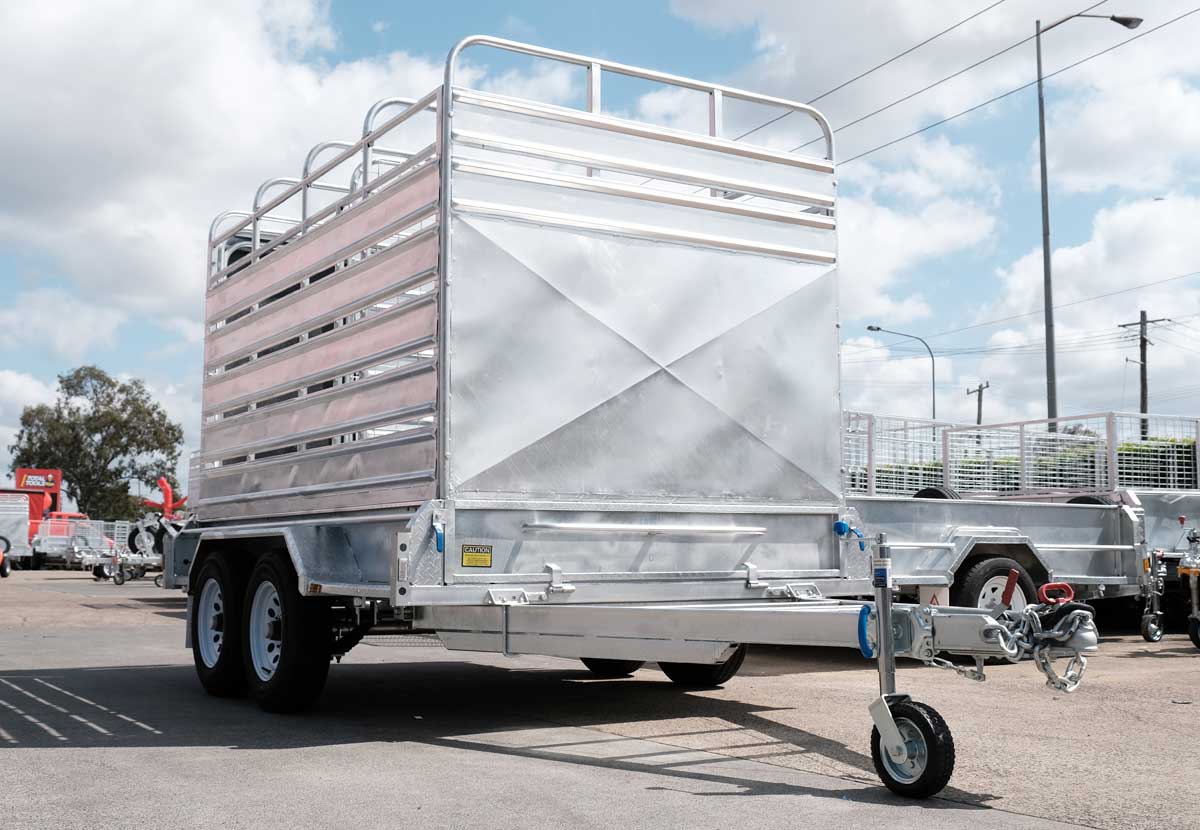

10×6 Cattle Crate Trailer – side view

What it's for

Moving a few head of cattle or other livestock, or a box trailer when the crate comes off.

Specifications

Model codeST10X6CC
ATM (aggregate trailer mass)3500 kg
Axlestandem
Deck / box (mm)3000 x 1800 (inner); total height 2570
Rims and tyres15" Sunraysia rims with light truck tyres
Suspension9-leaf heavy duty springs, rocker roller suspension
ChassisFully welded heavy duty body with RHS tube chassis
Floor2.5 mm galvanised checker plate floor, sides and gates
Drawbar (mm)1900

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

  • Hot-dip galvanised
  • Swing up Jockey Wheel
  • 1700mm High Removable Cattle Crate
  • Rear Gate with Slide/Drop Down Ramp
  • 1900MM Ultra-long Draw Bar for Easy Reversing
  • 15" Sunraysia Rims and Light Truck Tyres
  • Reinforced Under Floor with Extra Support Beams
  • Fully Welded Heavy Duty Body with RHS Tube Chassis
  • 9 Leaf Heavy Duty Springs with Rocker Roller Suspension
  • 2.5mm Galvanised Checker Plate Floor/Sides/Gates
  • Front and Rear Fold Down Gates (Removable)
  • Mesh Door Inside of Cattle Crate
  • Inner Box Dimensions: 3000mm x 1800mm
  • Tie Down Rails All Around
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackle
  • Flat 7 Pin Plug
  • Total Trailer Height: 2.57m
