CH Trailers · Emerald

12×7 Hydraulic Tipping Livestock Trailer

ST12X7HFTC3500 kg ATMtandem axle

A hot-dip galvanised 12×7 hydraulic tipping flat top rated to 3500 kg ATM with a removable cattle crate, swing-open rear gate and slide-out ramps.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

10×6 Cattle Crate Trailer3500 kg ATM
Enquire Ring Directions

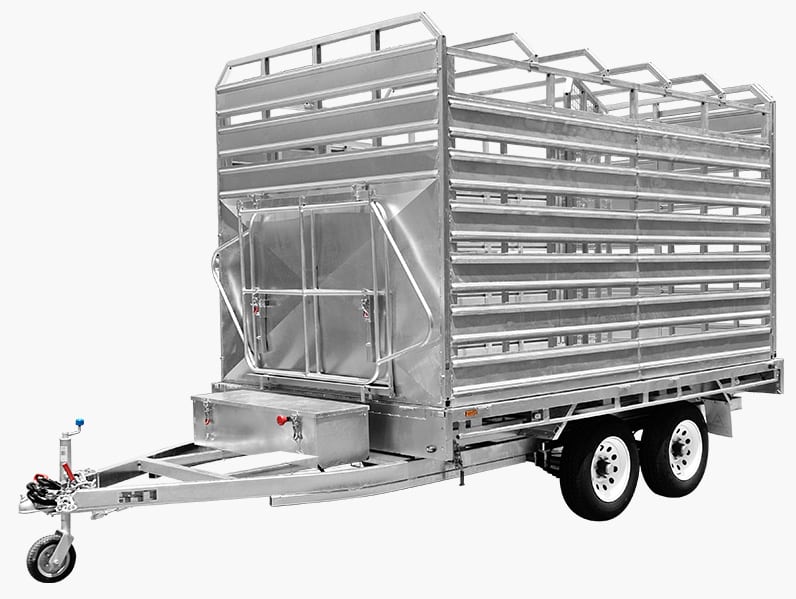

12×7 Hydraulic Tipping Livestock Trailer – front three-quarter view

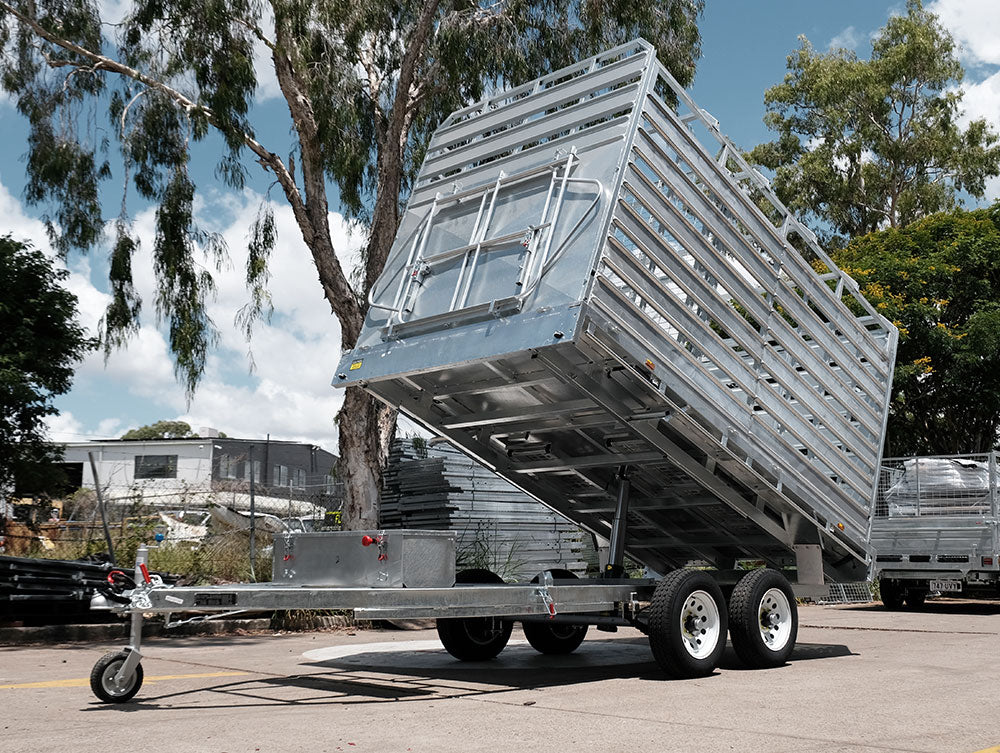

12×7 Hydraulic Tipping Livestock Trailer – crate tipping

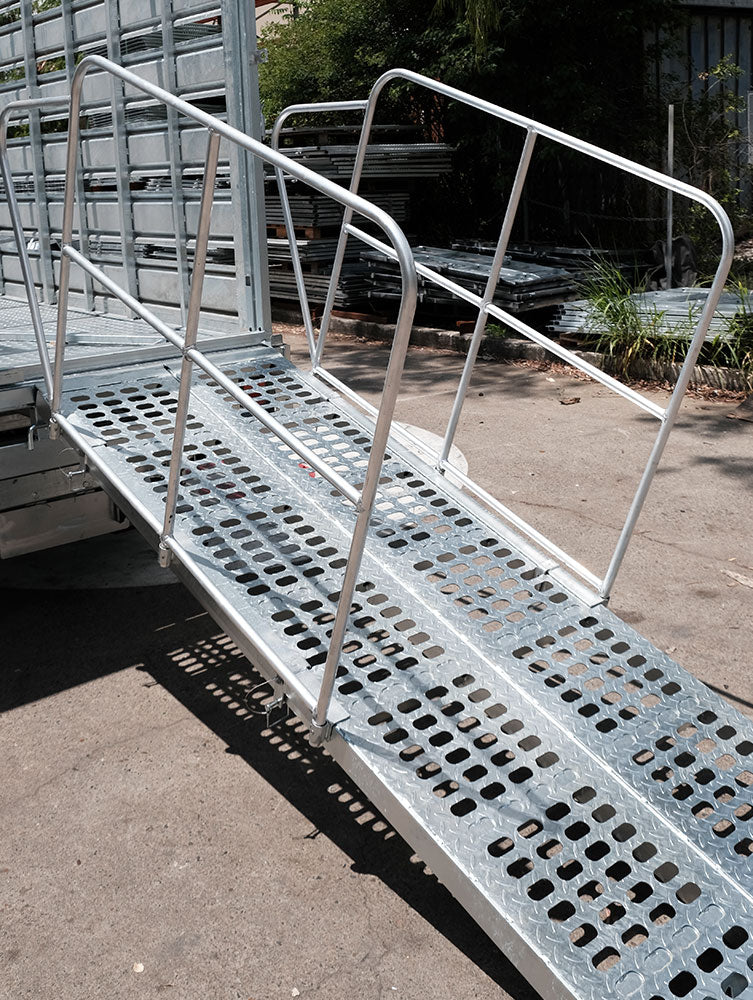

12×7 Hydraulic Tipping Livestock Trailer – loading ramp detail

What it's for

One trailer for the property: stock in the crate, machinery on the flat deck with the crate off, and a hydraulic tip for loose loads.

Specifications

Model codeST12X7HFTC
ATM (aggregate trailer mass)3500 kg
Axlestandem
Brakes12" electric brakes on all four wheels, separate battery-powered breakaway
Rims and tyres15" Sunraysia rims with light truck tyres, full-size spare and upright wheel holder
Suspension9-leaf heavy duty springs, rocker roller suspension
ChassisFully welded 100 x 50 x 5 mm RHS chassis
Floor4 mm galvanised checker plate floor
Drawbar (mm)1900

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

  • Hot-dip galvanised
  • 15" Sunraysia Rims and Light Truck Tyres Plus Full-Size Spare and Upright Wheel Holder
  • Swing up Jockey Wheel
  • Fully Swing Open Rear Gate / Slide Open Rear Door
  • 2 x Slide out Heavy Duty Loading Ramps
  • Build-in Hydraulic Power Pack
  • 4-Stage Hydraulic Tipping Ram with 4000KG Loading Capacity
  • 1900MM Ultra-long Draw Bar for Easy Reversing
  • Removable Cattle Crate
  • 12" Electric Brake on all Four Wheels
  • Chassis: Fully Welded 100mm X 50mm X 5mm RHS
  • Heavy Duty Rocker Roller 9 Leaf Springs Suspension
  • 4mm Galvanised Checker Plate Floor
  • Tie Down Rails on Sides
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackle
  • With Separate Battery Powered Brake Away System
  • Flat 7 Pin Plug
