CH Trailers · Emerald

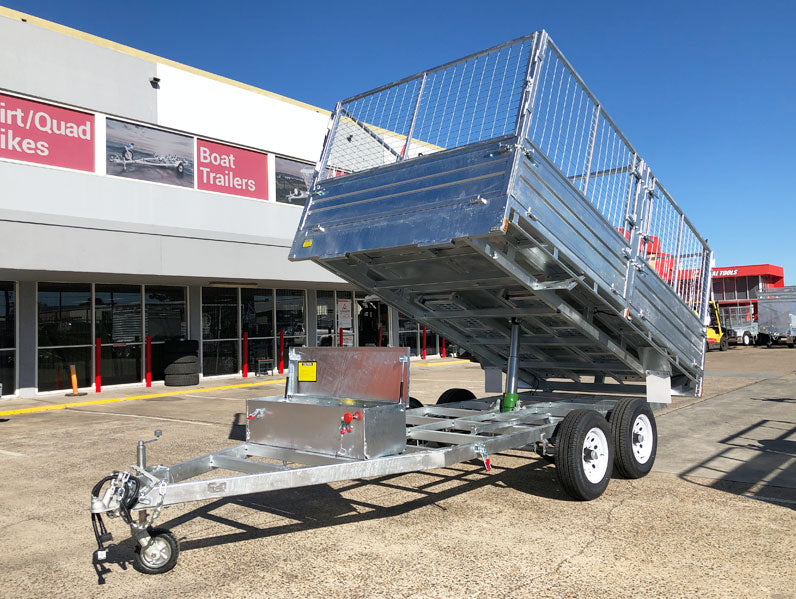

12×7 Hydraulic Flat-Top Tipper Trailer
A hot-dip galvanised 12×7 flat-top tipper rated to 3500 kg ATM: removable 450 mm sides and 900 mm cage, slide-out ramps and a 4-stage hydraulic ram.
Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.
See it in Emerald
CH Tools
58 Hospital Rd
Emerald QLD 4720
Hours
Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm
Ring the team
What it's for
The 12×7 deck takes bigger plant and longer loads than the 10×6, with the same tip-and-go convenience.
Specifications
| Model code | ST12X7FTT |
|---|---|
| ATM (aggregate trailer mass) | 3500 kg |
| Axles | tandem |
| Brakes | 12" electric brakes on all four wheels, separate battery-powered breakaway |
| Sides (mm) | 450 removable (plus 900 mm cage, total 1350) |
| Rims and tyres | 15" Sunraysia rims with light truck tyres, full-size spare and upright wheel holder |
| Suspension | 9-leaf heavy duty springs, rocker roller suspension |
| Chassis | Fully welded 100 x 50 x 5 mm RHS chassis |
| Floor | 4 mm galvanised checker plate floor |
| Drawbar (mm) | 1900 |
Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.
Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.
What to bring to an enquiry
What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.
What's on it
- Hot-dip galvanised
- 15" Sunraysia Rims and Light Truck Tyres Plus Full-Size Spare and Upright Wheel Holder
- Swing up Jockey Wheel
- Removable 450mm High Sides and 900mm Tall Cage (Total Height: 1350mm)
- 2 Slide out Heavy-Duty Loading Ramps
- 4-Stage Hydraulic Tipping Ram with 3500KG Loading Capacity
- 1900MM Ultra-long Draw Bar for Easy Reversing
- 12" Electric Brake on all Four Wheels
- Drop Down side & Back Panels (Removable)

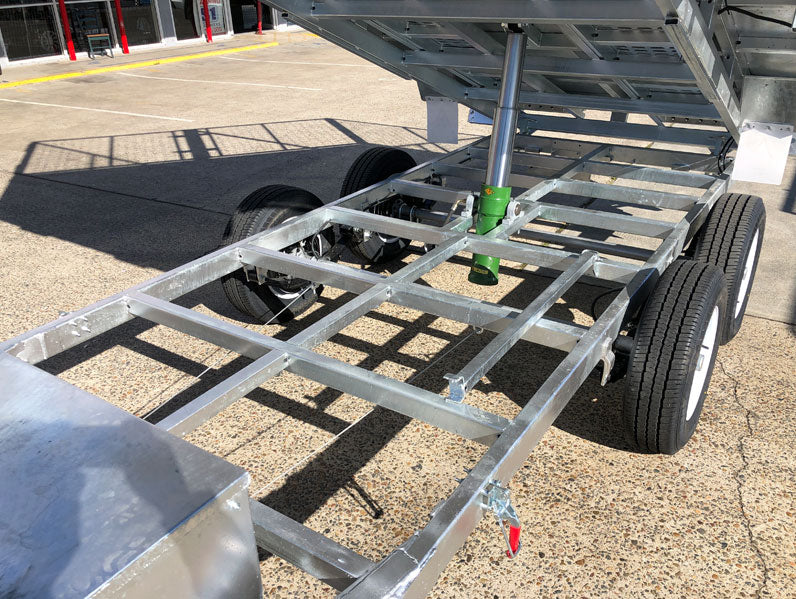

- Chassis: Fully Welded 100mm X 50mm X 5mm RHS
- 9 Leaf Heavy Duty Springs with Rocker Roller Suspension
- 4mm Galvanised Checker Plate Floor

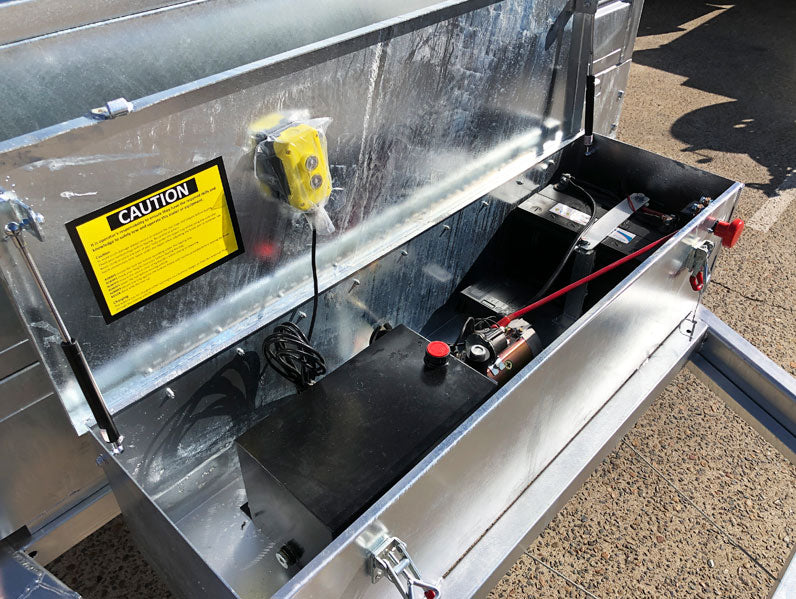

- Lockable Toolbox for Hydraulic System
- 12V Automotive Battery comes with Hydraulic System
- Anderson Plug Fitted

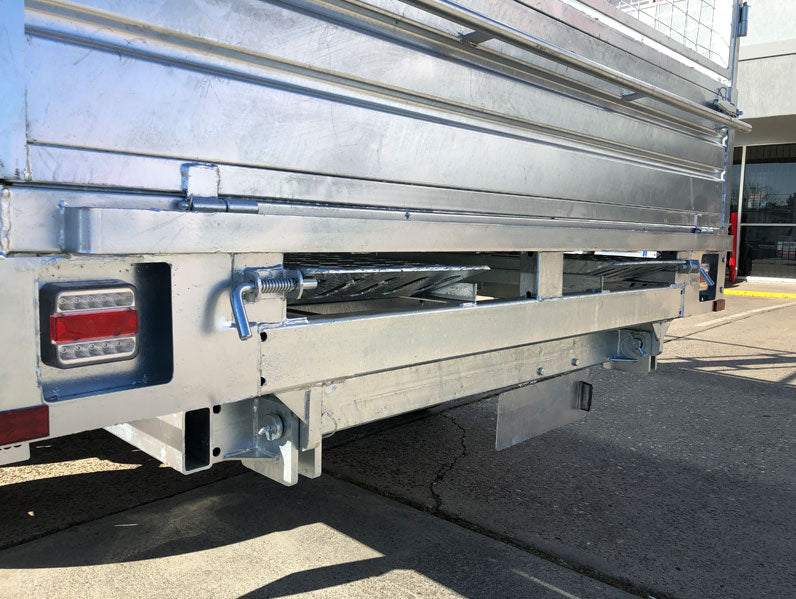

- Tie Down Rails All Around
- LED Taillights
- ADR Standard Heavy-Duty Chain & Load Rated Shackle
- With Separate Battery Powered Brake Away System
- Flat 7 Pin Plug
Enquire
Ask about this trailer.
Tell us what you'll use it for and the team will be in touch. No prices online, no online purchase — this starts a conversation with the yard in Emerald.
Enquiring about: ST12X7FTT — 12×7 Hydraulic Flat-Top Tipper Trailer
Rather talk? Ring 07 4982 1322 or come in to 58 Hospital Rd, Emerald.
