CH Trailers · Emerald

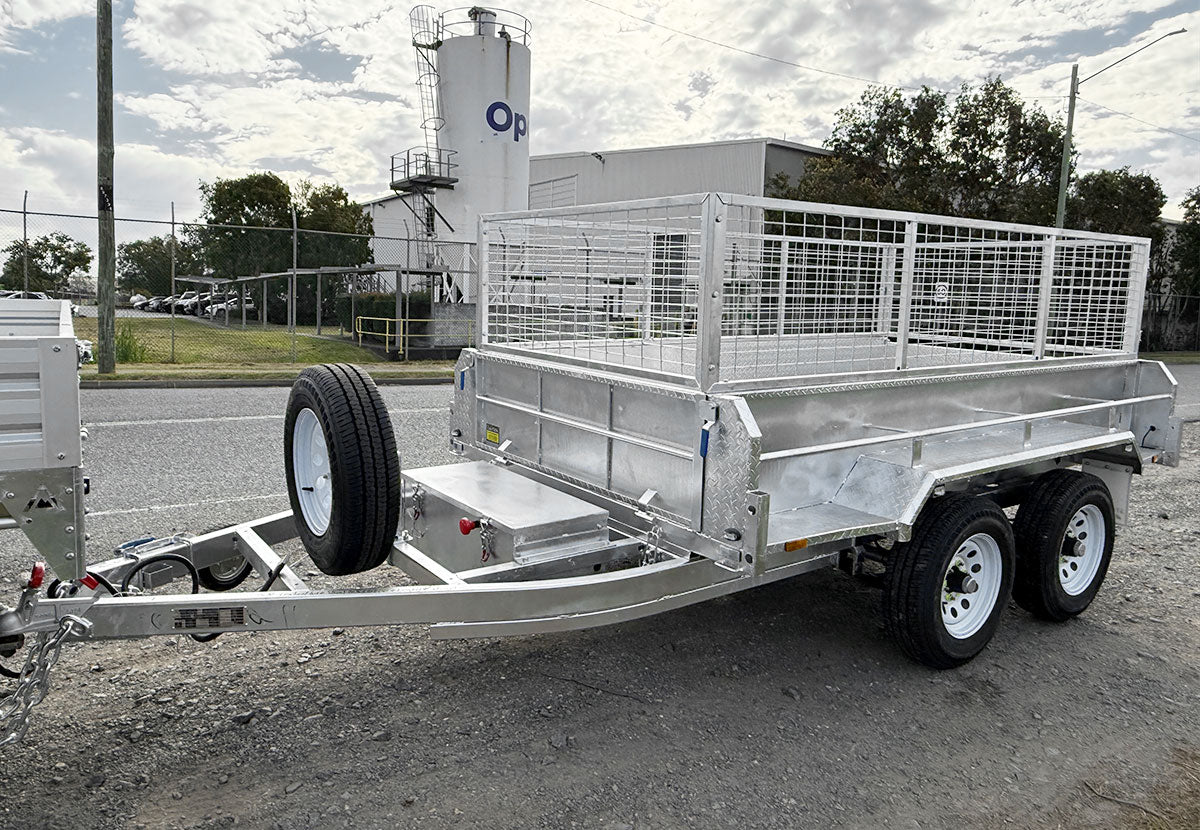

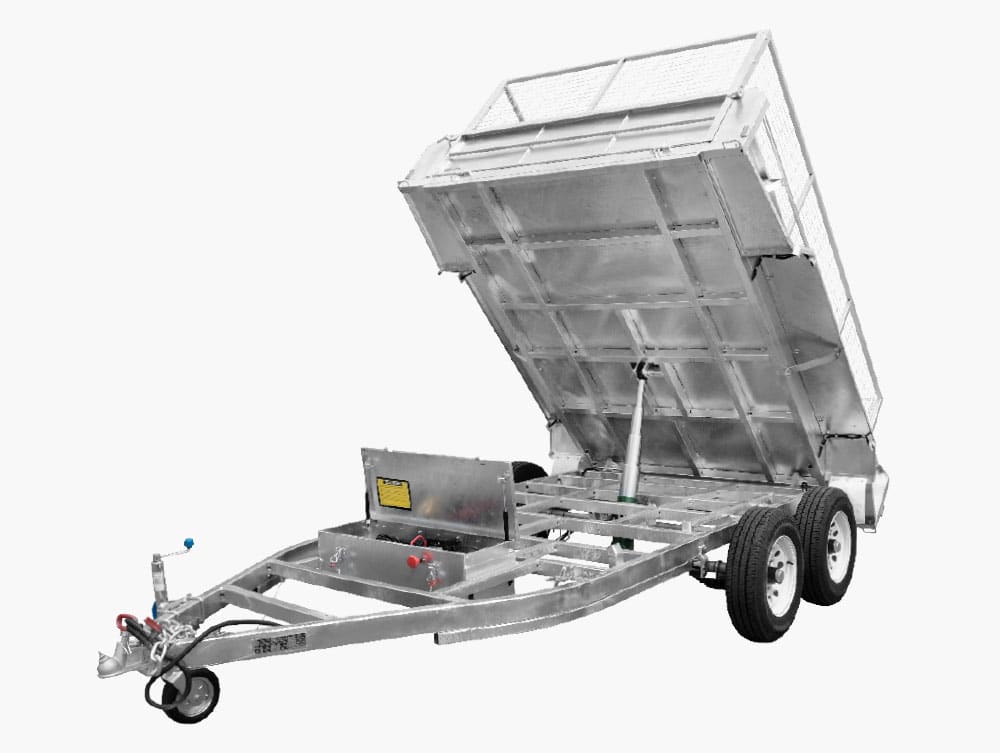

8×5 Hydraulic Tipper Trailer
A hot-dip galvanised 8×5 hydraulic tipper rated to 3500 kg ATM, with a built-in power pack, 4-stage ram, 450 mm sides and a 600 mm cage.
Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.
See it in Emerald
CH Tools
58 Hospital Rd
Emerald QLD 4720
Hours
Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm
Ring the team
What it's for
Gravel, soil, green waste and demolition rubble: back it up, tip it out, no shovel. Suited to landscapers, farm work and councils.
Specifications
| Model code | ST8X5HT |
|---|---|
| ATM (aggregate trailer mass) | 3500 kg |
| Axles | tandem |
| Brakes | 12" dual-axle electric drum brakes, electric breakaway unit |
| Sides (mm) | 450 (plus 600 mm cage) |
| Rims and tyres | 15" Sunraysia rims with light truck tyres, full-size spare and upright wheel holder |
| Suspension | 9-leaf heavy duty springs, rocker roller suspension |
| Chassis | One-piece fully welded heavy duty chassis; 100 x 50 x 5 mm box section drawbar and main chassis |
| Floor | 2.5 mm galvanised checker plate all around (floor, gates, sides, guards) |
| Drawbar (mm) | 1900 |
Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.
Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.
What to bring to an enquiry
What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.
What's on it
- Hot-dip galvanised
- 15" Sunraysia Rims and Light Truck Tyres Plus Full-Size Spare and Upright Wheel Holder
- Heavy Duty Swing up Jockey Wheel & Manual Parking Brakes
- One-piece Fully Welded Heavy Duty Chassis
- Build-in Hydraulic Power Pack
- 600mm High Galvanised Cage
- 450mm Extra High Trailer Sides
- 4-Stage Hydraulic Tipping Ram with 4000KG Loading Capacity
- 1900MM Ultra-long Draw Bar for Easy Reversing
- 12" Dual Axle Electric Drum Brakes
- Solid Axles Rated at 2000KG Each
- 2.5mm Galvanised Checker Plate All Around (Floor/Gates/Sides/Guards)
- 9 Leaf Heavy Duty Springs with Rocker Roller Suspension
- 100mm x 50mm x 5mm Box Section Used on Drawbar and Main Chassis
- Electric Brake-away Unit Fitted
- Anderson Plug Fitted
- Lockable Toolbox for Hydraulic System
- Front and Rear Drop Down Gates
- Tie Down Rails All Around
- 12V Automotive Battery comes with Hydraulic System
- LED Taillights
- ADR Standard Heavy-Duty Chain & Load Rated Shackle
- Flat 7 Pin Plug
Optional extras
- 900mm Extra High Removable Cage
- 600mm Canvas Cover & Support Frames Fitted
- 900mm Canvas Cover & Support Frames Fitted
- Ladder Racks (Height Adjustable)
Ask the team about fitting extras to suit the job.
Enquire
Ask about this trailer.
Tell us what you'll use it for and the team will be in touch. No prices online, no online purchase — this starts a conversation with the yard in Emerald.
Enquiring about: ST8X5HT — 8×5 Hydraulic Tipper Trailer
Rather talk? Ring 07 4982 1322 or come in to 58 Hospital Rd, Emerald.
