CH Trailers · Emerald

14×7 Flat Top Trailer

ST14X7FT3500 kg ATMtandem axle

A hot-dip galvanised 14×7 flat top rated to 3500 kg ATM, with two heavy duty loading ramps, a removable 1200 mm headboard and removable 300 mm sides.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

12×7 Flat Top Trailer3500 kg ATM 19×8 Heavy Duty Tri-Axle Flat Deck Trailer4490 kg ATM 6×4 Single Axle Flat Top Trailer1200 kg ATM
Enquire Ring Directions

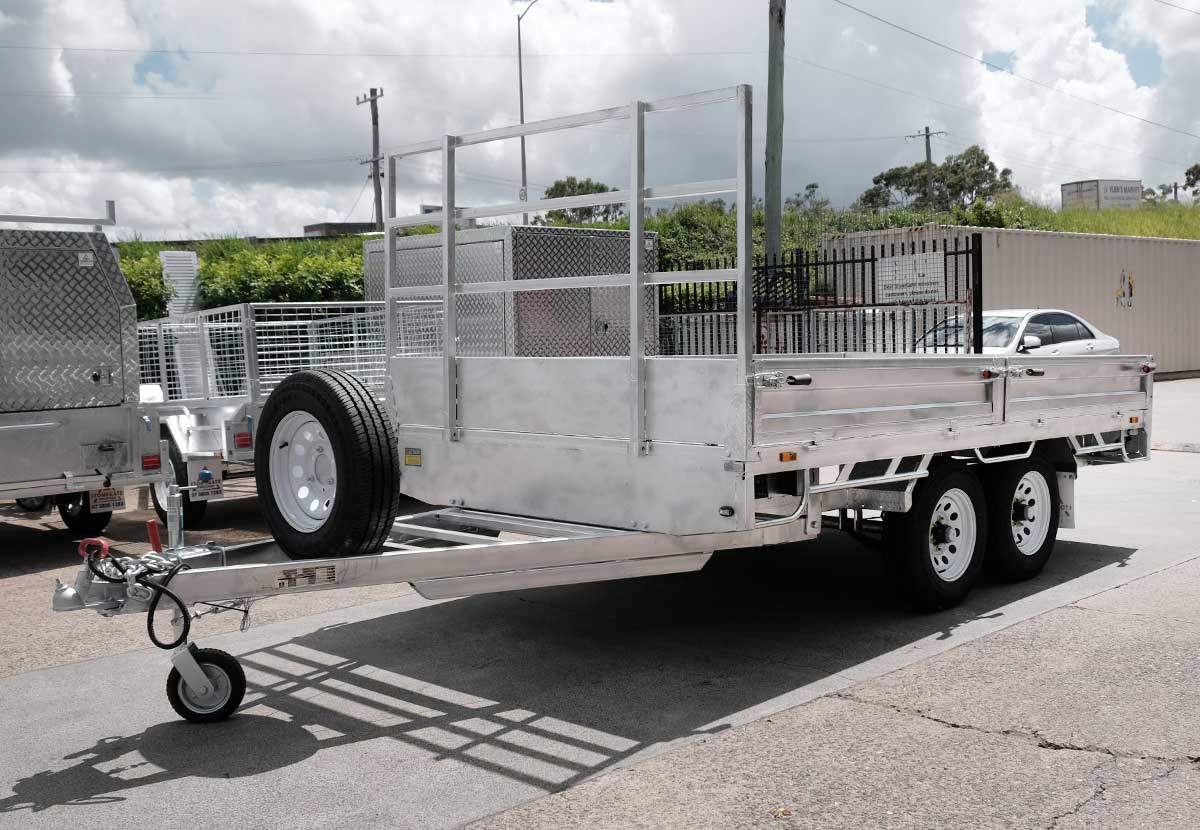

14×7 Flat Top Trailer – front three-quarter view

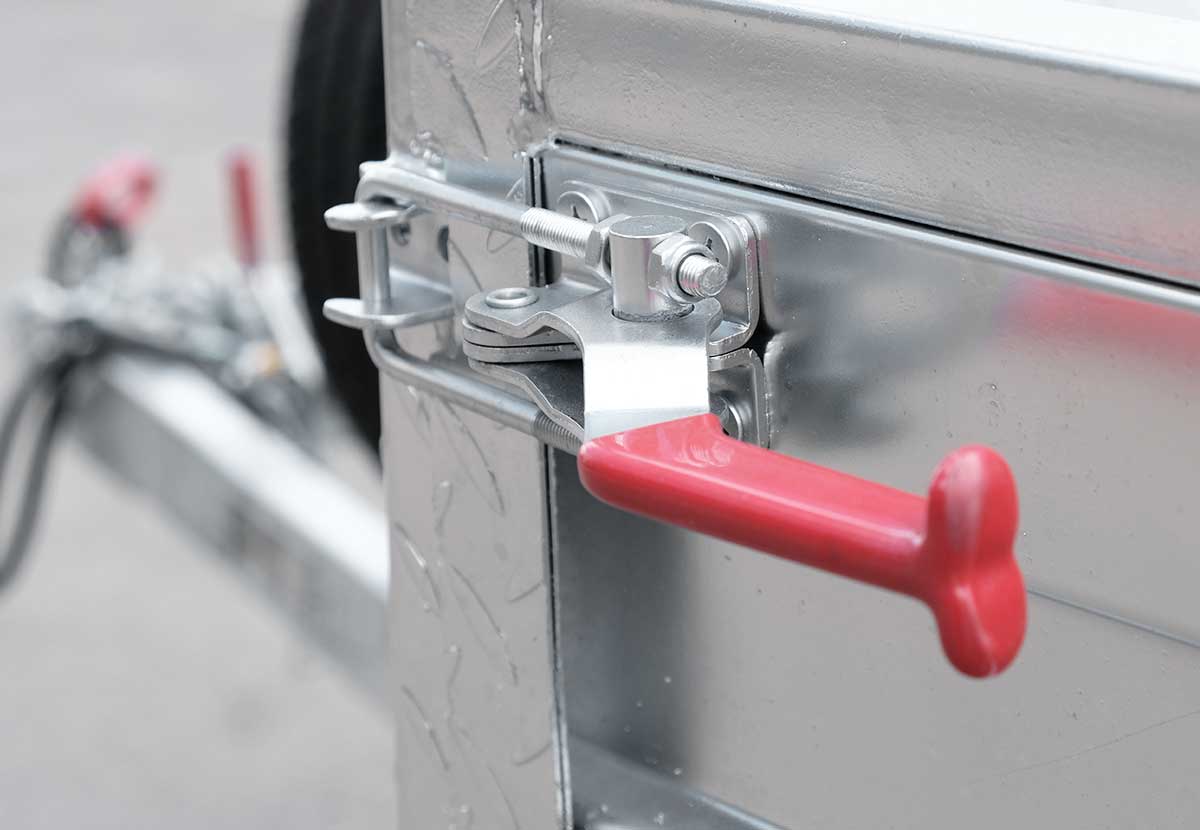

14×7 Flat Top Trailer – side-rail latch detail

What it's for

The longest tandem flat top in the range: longer plant, two quads end to end, or long building materials.

Specifications

Model codeST14X7FT
ATM (aggregate trailer mass)3500 kg
Axlestandem
Brakes12" electric brakes on all four wheels, separate battery-powered breakaway
Sides (mm)300 removable
Rims and tyres15" Sunraysia rims with light truck tyres, full-size spare and upright wheel holder
Suspension9-leaf heavy duty springs, rocker roller suspension
ChassisFully welded 100 x 50 x 5 mm RHS chassis
Floor4 mm galvanised checker plate floor and sides
Drawbar (mm)1900

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

  • Hot-dip galvanised
  • 15" Sunraysia Rims and Light Truck Tyres Plus Full-Size Spare and Upright Wheel Holder
  • Swing up Jockey Wheel
  • Includes 2 x Heavy Duty Loading Ramps
  • 1900MM Ultra-long Draw Bar for Easy Reversing
  • Removable headboard: 1200mm High
  • Fold Downside Panels (Removable)
  • 300mm High Sides (Removable)
  • 12" Electric Brake on all Four Wheels
  • Chassis: Fully Welded 100mm X 50mm X 5mm RHS
  • Heavy Duty Rocker Roller 9 Leaf Springs Suspension
  • 4mm Galvanised Checker Plate Floor/Sides
  • Tie Down Rails on Sides
  • Stand up Wheel Holder
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackle
  • With Separate Battery Powered Brake Away System
  • Flat 7 Pin Plug
