CH Trailers · Emerald

6×4 Single Axle Flat Top Trailer

ST6X4FT1200 kg ATMsingle axle

A compact hot-dip galvanised 6×4 single axle flat top rated to 1200 kg ATM, with a 1870 × 1200 mm deck, stabilising legs and eight tie-down rings.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

12×7 Flat Top Trailer3500 kg ATM 14×7 Flat Top Trailer3500 kg ATM 19×8 Heavy Duty Tri-Axle Flat Deck Trailer4490 kg ATM
Enquire Ring Directions

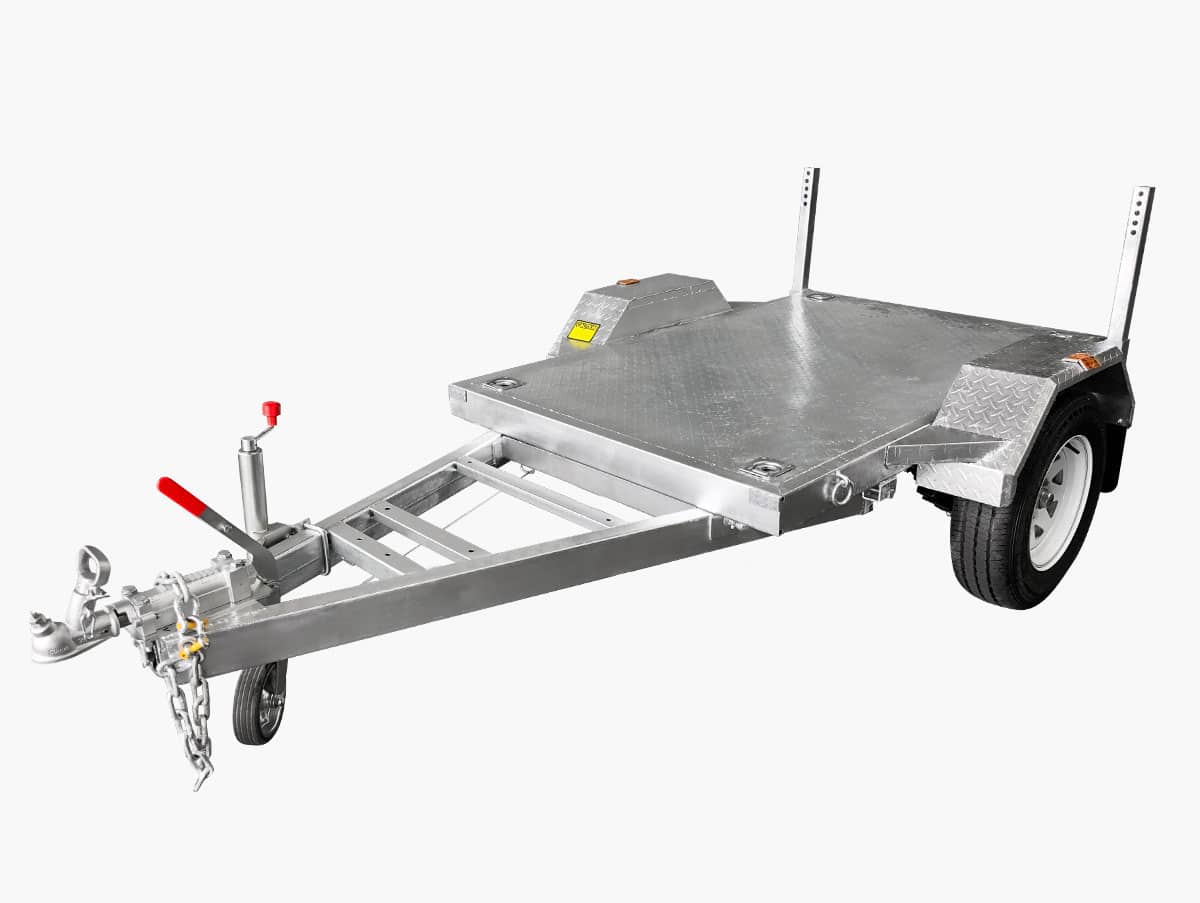

6×4 Single Axle Flat Top Trailer – front three-quarter view

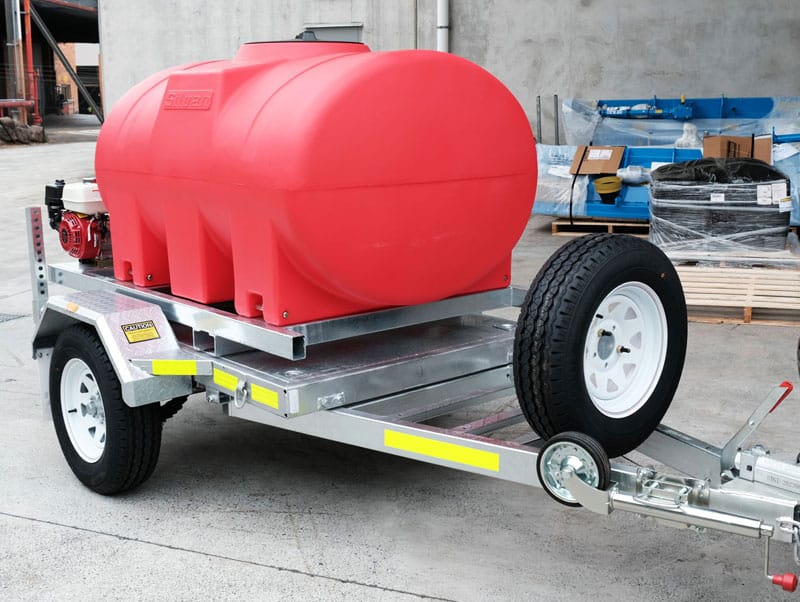

6×4 Single Axle Flat Top Trailer – carrying a water tank

What it's for

A small flat deck for a quad, a mower or a pallet behind a ute or wagon; light enough for a standard tow bar.

Specifications

Model codeST6X4FT
ATM (aggregate trailer mass)1200 kg
Tare300 kg
Axlessingle
BrakesMechanical disc brake
Deck / box (mm)1870 x 1200 (deck); overall 3200 x 1700 x 550
Rims and tyres14" Sunraysia rims with light truck tyres, full-size spare and mount
Suspension7-leaf eye-to-eye springs (AU standard 8 mm), solid decompression hanger
ChassisFully welded heavy duty body and chassis; 100 x 50 x 3 mm frame
Floor2.5 mm galvanised checker plate floor
Drawbar (mm)1340

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

  • Hot-dip galvanised
  • 8" Heavy Duty Swing up Jockey Wheel
  • Fully Welded Heavy Duty Body & Chassis
  • 2 x Adjustable Stabilising Legs
  • 4 x Tie Down Rings on Deck
  • Total of 4 x Tie Down Rings on Side
  • Deck Size: 1870mm x 1200mm
  • 1340mm Long Draw Bar (100 x 50 x 3mm)
  • Chassis Frame: 100mm x 50mm x 3mm
  • 2.5mm Thickness Galvanised Checker Plate Floor
  • 14" Sunraysia Rims with Light Truck Tyres Plus Full-sized Spare & Mount
  • 50mm Round Solid Axle
  • 7-Leaf Eye to Eye Springs (AU Standard 8mm)
  • Solid Decompression Hanger for Better Performance on Corrugated Roads
  • Brake: Mechanic Disc Brake
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackle
  • Flat 7 Pin Plug
  • TARE: 300KG
  • Overall Size: 3200mm (L) x 1700mm (W) x 550mm (H)
