CH Trailers · Emerald

11×6 ATV, UTV and Mower Tilt Trailer

ST11X6ATV1400 kg ATMsingle axle

A hot-dip galvanised 11×6 tilt trailer rated to 1400 kg ATM, gas-strut assisted, with a 2.5 mm checker plate floor for side-by-sides, golf carts and mowers.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

10×6 Tandem Axle Mower Trailer1990 kg ATM 8×5 ATV, Motorbike and Mower Trailer750 kg ATM 8×5 Tandem Axle Mower Trailer1990 kg ATM
Enquire Ring Directions

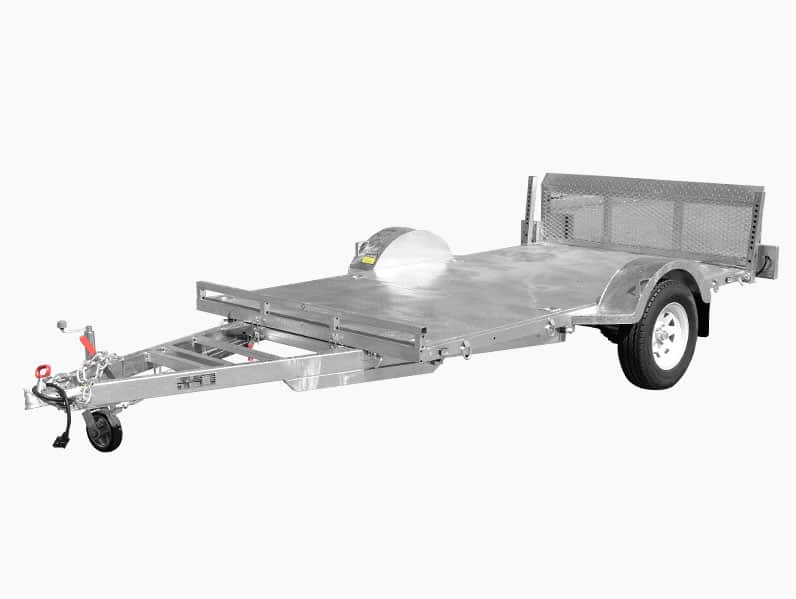

11×6 ATV, UTV and Mower Tilt Trailer – front three-quarter view

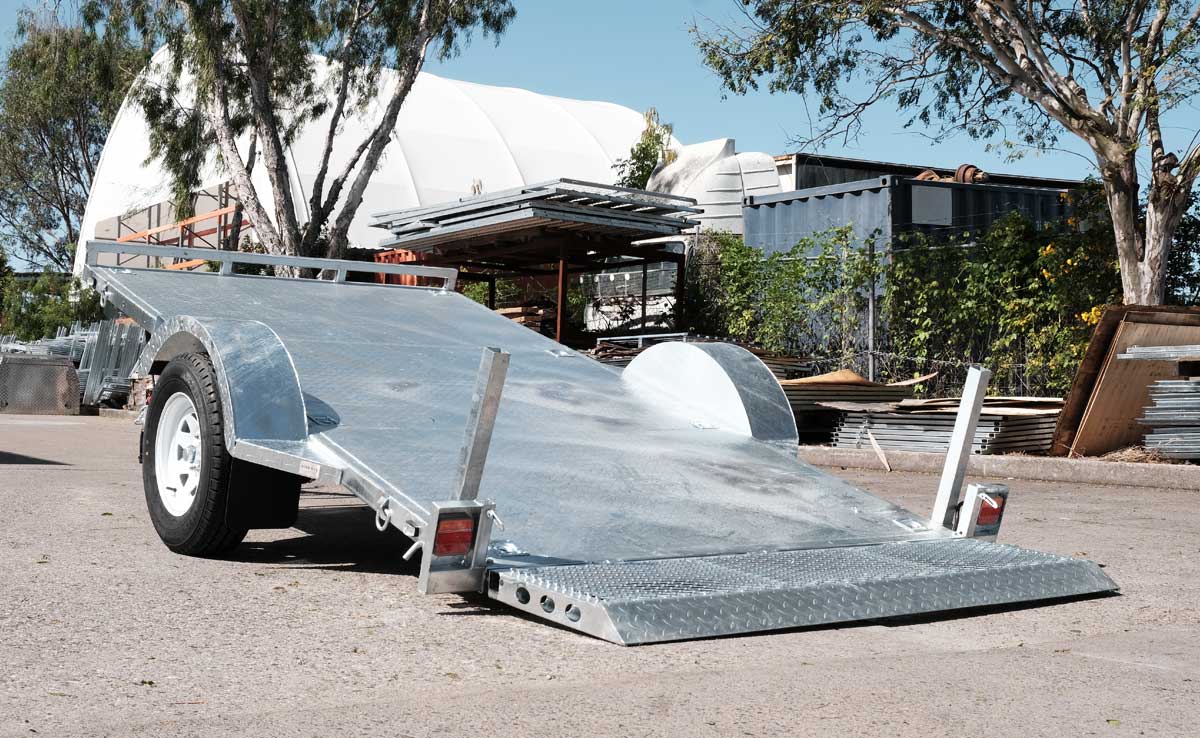

11×6 ATV, UTV and Mower Tilt Trailer – tilt deck lowered

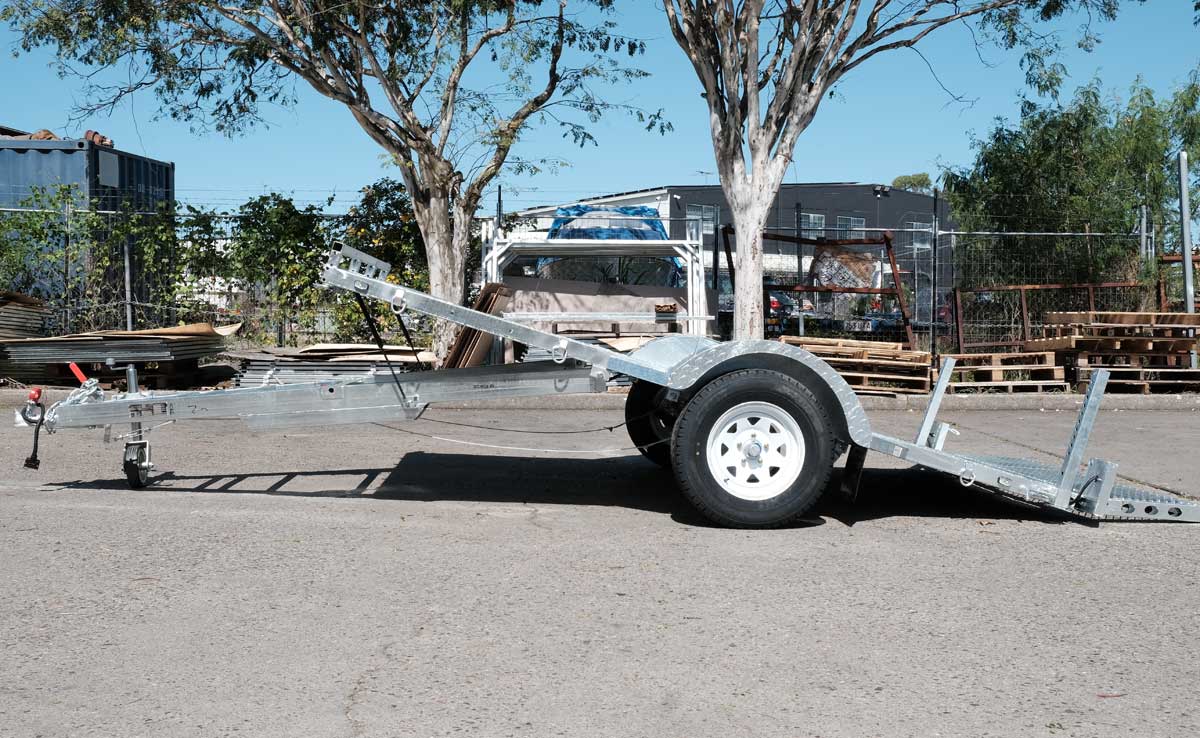

11×6 ATV, UTV and Mower Tilt Trailer – side view

What it's for

Side-by-sides, UTVs, golf carts and zero-turn mowers: the tilt deck and gas struts make it a one-person load.

How it differs

Rated to 1400 kg ATM with a tilt deck on gas struts, 14-inch rims, a galvanised checker-plate floor and a 1500 mm drawbar.

Specifications

Model codeST11X6ATV
ATM (aggregate trailer mass)1400 kg
Axlessingle
Rims and tyres14" Sunraysia rims and tyres
Suspension7-leaf rocker roller springs (heavy duty suspension)
Floor2.5 mm galvanised checker plate floor
Drawbar (mm)1500

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

  • Hot-dip galvanised
  • 14" Sunraysia Rims and Tyres
  • Swing up Jockey Wheel
  • Tilt Function with Quick Release Locking Pins
  • 1500mm Extra Long Draw Bar for Easy Manoeuvre & Reversing
  • 7-Leaf Rocker Roller Springs (Heavy Duty Suspension)
  • 2 x Gas Struts for Easy Tilting
  • 2 x Tilting Support Legs
  • 2.5mm Thickness Galvanised Checker Plate Floor
  • LED Taillights
  • ADR Standard Heavy-Duty Chain & Load Rated Shackle
  • Flat 7 Pin Plug

Optional extras

  • 1.8 m loading ramps, 750 kg loading capacity each (single or pair)

Ask the team about fitting extras to suit the job.
