CH Trailers · Emerald

8×5 ATV, Motorbike and Mower Trailer

ST8X5ATV750 kg ATMsingle axle

A hot-dip galvanised 8×5 tilt trailer rated to 750 kg ATM, with three removable motorcycle wheel holders, a rear mesh ramp and a mesh floor.

Explore the CH Trailers range through CH Tools in Emerald. Contact our team to check availability and what is on the yard to view, or enquire in store about the right trailer for your needs.

Enquire about this trailer Ring 07 4982 1322 Directions

See it in Emerald

CH Tools
58 Hospital Rd
Emerald QLD 4720

Hours

Mon–Fri 7:30am – 5pm
Sat 7:30am – 1pm

Ring the team

07 4982 1322

Also in this range

10×6 Tandem Axle Mower Trailer1990 kg ATM 11×6 ATV, UTV and Mower Tilt Trailer1400 kg ATM 8×5 Tandem Axle Mower Trailer1990 kg ATM

Enquire Ring Directions

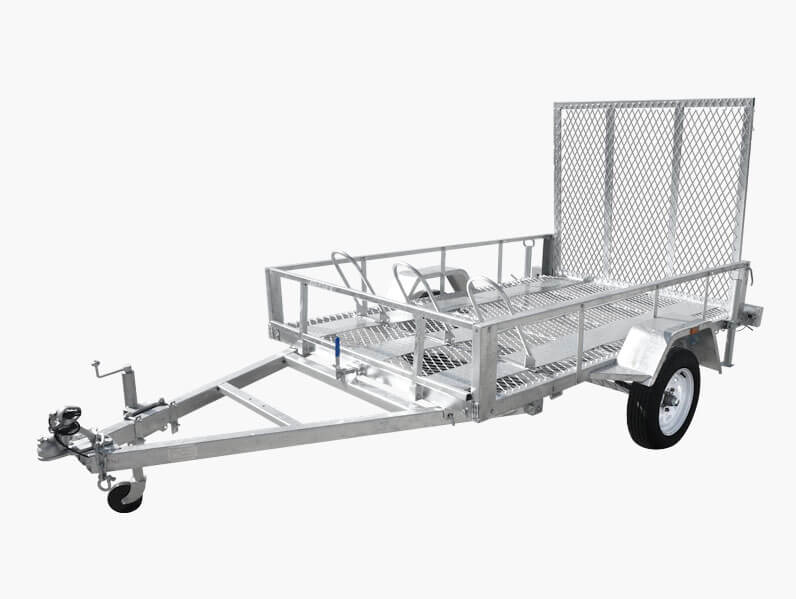

8×5 ATV, Motorbike and Mower Trailer – front three-quarter view

What it's for

Two or three dirt bikes, a quad or a ride-on mower: tilt it, roll on, strap down.

How it differs

The lightest of the three ATV trailers: 750 kg ATM on 13-inch rims, a mesh floor and a built-in ramp.

Specifications

Model code	ST8X5ATV
ATM (aggregate trailer mass)	750 kg
Axles	single
Rims and tyres	13" Sunraysia rims and tyres
Suspension	5-leaf eye-to-eye springs
Chassis	50 x 50 x 3 mm chassis; built-in ramp body 1300 x 1440 mm
Floor	Mesh with checker rib floor
Drawbar (mm)	1600

Specifications as supplied for this model. Ask the team to confirm the details that matter for your job.

Trailers are not available to purchase online and there are no prices online. Ring, enquire or visit the yard in Emerald.

What to bring to an enquiry

What you plan to carry and how often, the vehicle you'll tow with, and where the trailer will live. The team can then talk through size, ATM and the options that suit the job.

See the whole CH Trailers range

What's on it

Hot-dip galvanised
13" Sunraysia Rims & Tyres
Swing up Jockey Wheel
Tilt Function with Quick Release Locking Pins
3 x Removable Motorcycle Wheel Holders
Rear Fold Down Mesh Ramp
1600mm Extra Long Draw Bar for Easy Manoeuvre & Reversing
5-Leaf Eye to Eye Springs
2 x Tilting Support Legs
Mesh with Checker Rib Floor
LED Taillights
ADR Standard Heavy-Duty Chain & Load Rated Shackle
Flat 7 Pin Plug
Body: Built-In-Ramp (1300 x 1440mm)
Chassis: 50mm x 50mm x 3mm

Optional extras

Small Toolbox: 1200mm(L) x 400mm(W) x 500mm(H)
Large Toolbox: 1220mm(L) x 500mm(W) x 500mm(H)
Small Mower Box with Ramps: 1150mm(L) x 630mm(W)
Large Mower Box with Ramps: 1150mm(L) x 760mm(W)

Ask the team about fitting extras to suit the job.

Enquire

Ask about this trailer.

Tell us what you'll use it for and the team will be in touch. No prices online, no online purchase — this starts a conversation with the yard in Emerald.

Enquiring about: ST8X5ATV — 8×5 ATV, Motorbike and Mower Trailer
